HDC1-100 Camera Head

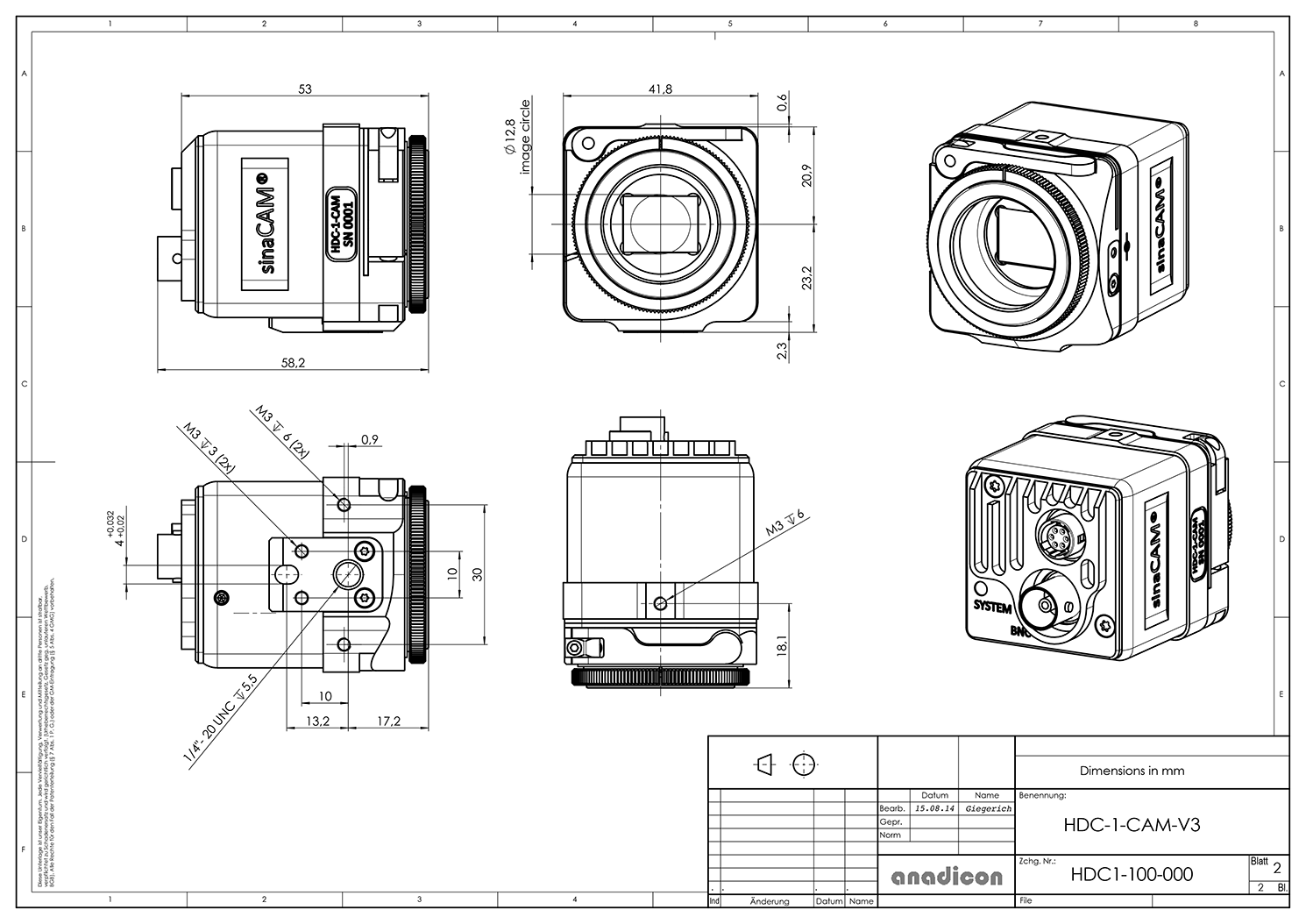

Measurements Sheet
Image Capture
Image Sensor
2/3″ Single Chip On Semi Conductor (Kodak) CCD Sensor (RGB)
2004×1144 Pixels, Progressive Scan
Sensitivity
2000 Lux at f 8.0, 0dB Gain (100% video out)
160 Lux at f 2.2, 0dB Gain (100% video out)
Resolution
1920×1080 Pixels
Dynamic Range
13.5 f-stops
Signal/Noise Ratio
64dB at 0dB Gain
Connectivity
Interface
CoaxPress 75Ohm BNC
Cable Length
80m (260ft)* / 180m (590ft)**
Lens Mount Compatability
C-Mount
Native, with back focus adjustment
B4-Mount
with adaptor (incl. optical element)
Operation & Environment
Power Consumption
max. 4.6 W
Temperature Operating Range
0 - 45°C (32 - 113°F)
Conformity
EMV: 2004/108/EG
CE: 93/68/EWG
Low Voltage Standard 73/23/EWG
RoHS
HDC1-200 Base Unit

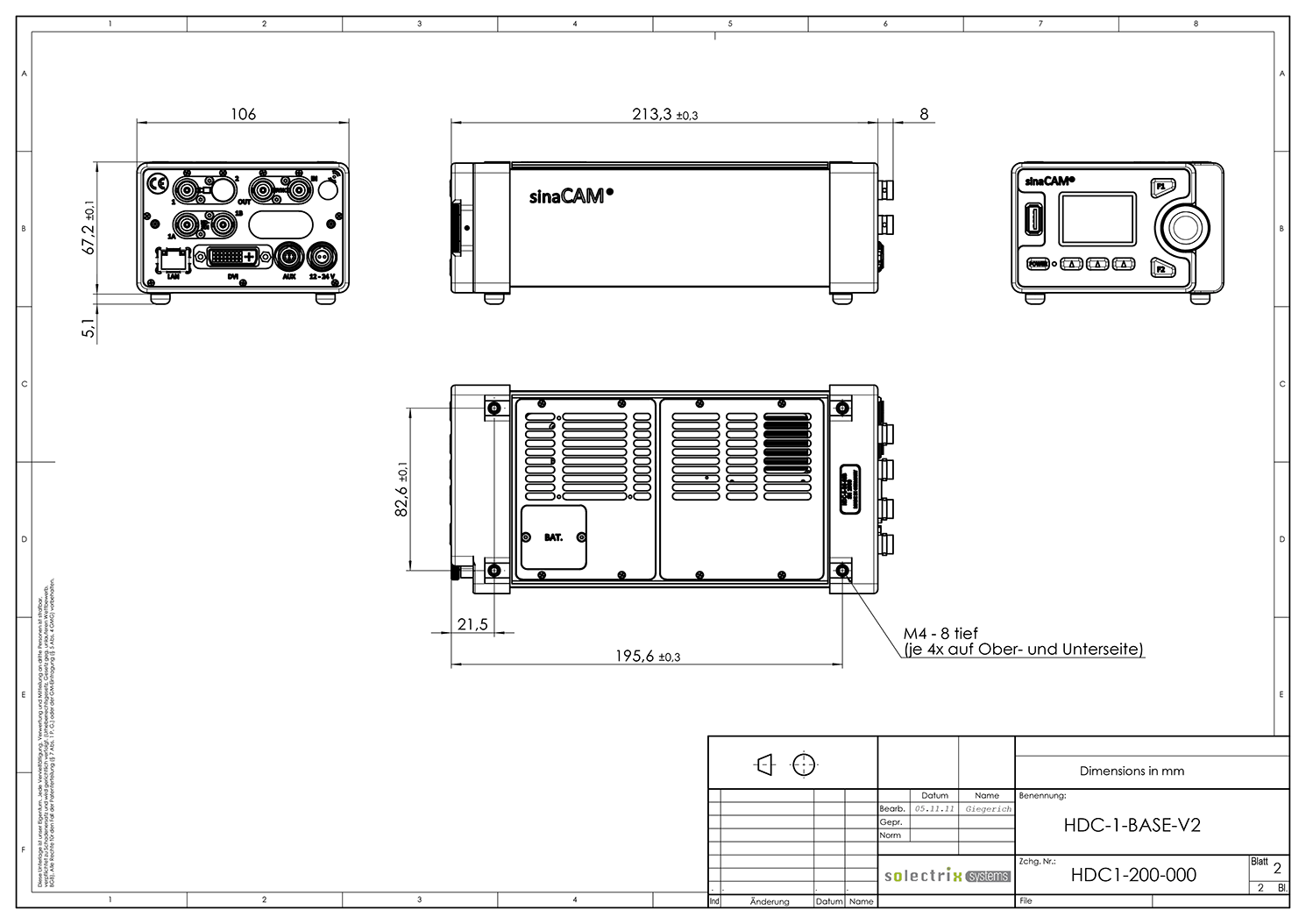

Measurements Sheet
Image Processing
Digital Signal Processing
Single-Chip 16-Bit DSP for both video signals
White Balance
Automatic (push to set), Manual (R & B)
3200K, 4300K, 5600K, 6800K
Exposure Control
200, 400, 800 ASA
Electronic Shutter
Full Frame, 1/50s ... 1/1000s
Gamma Curves
R.709, 2Bas, 4/6/8Log, Sina, Custom LUT
Electronic Shutter
Full Frame, 1/50s ... 1/1000s

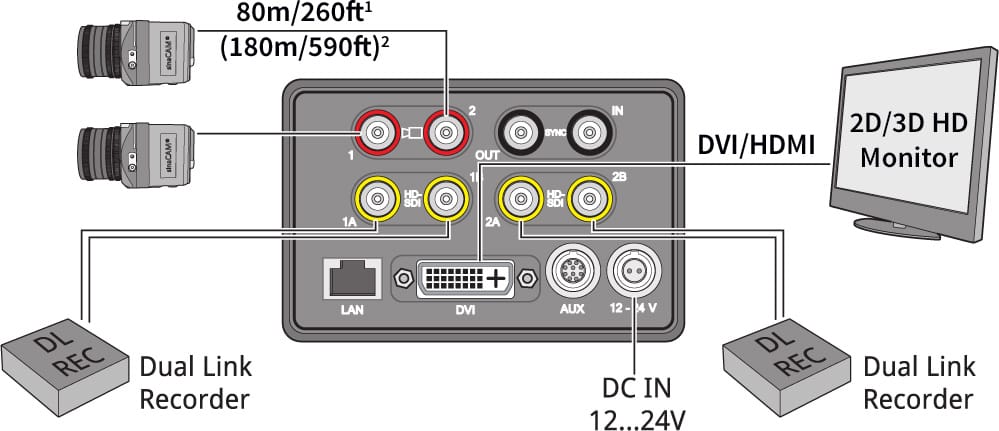

Video Output
Output Signals
up to 4x HD-SDI (SMPTE 292M, 372M)
DVI (Digital Monitor Output 1920×1080, 60Hz)
HD-SDI Output Format
10-Bit YCbCr 4:2:2
Output Resolutions
1280×720, 1920×1080
Output Framerates
24p, 24psf, 25p, 25psf, 50i, 30p, 30psf, 60i, 48p, 50p, 60p, 23.9p, 23.9psf, 29.9p, 29.9psf, 59.9i, 59.9p
3D Monitoring Modes
Alternate Frame or Line, Subtract, Anaglyph

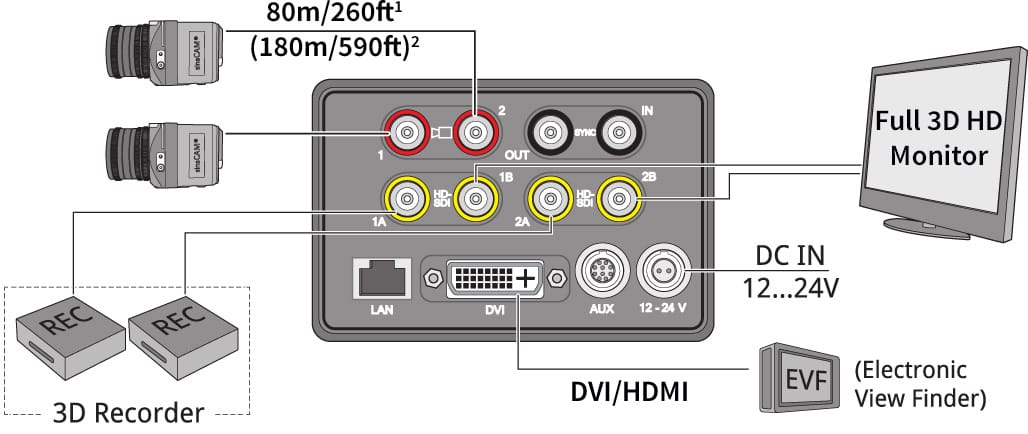

Connectivity
Interface (to remote heads)
CoaxPress 75Ohm BNC
Communication Ports
100MBit Ethernet,
WLAN I802.11a/b/g Dual Band 2.4/5GHz,
RS232/485, USB 2.0 (frame grab),
AUX terminal for Remote Control Panels
User Interfaces
On-Device Menu with Two User Profiles,
Web-Interface, Remote Control Panels

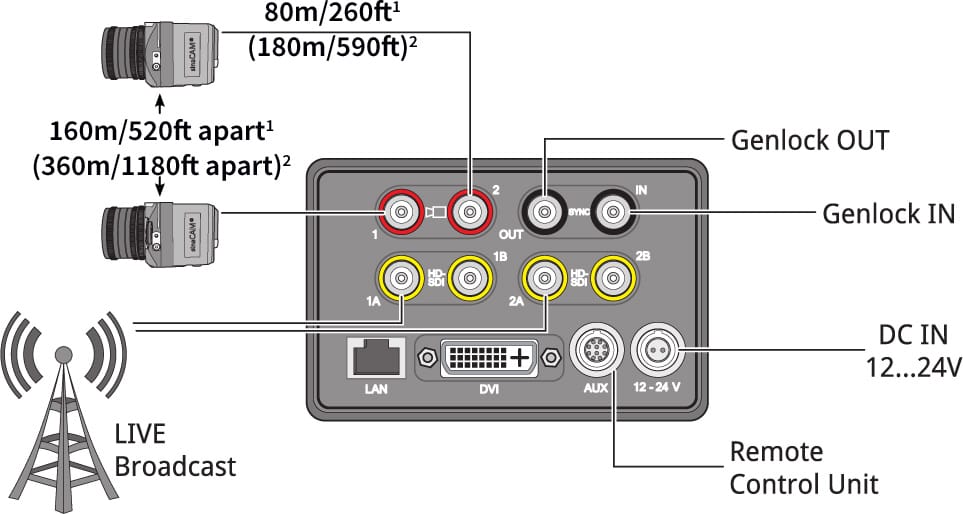

External Synchronisation
Genlock to Tri-Level Sync, Black Burst
10-Pin ODU/LEMO (AUX)
RS232/485, Exposure Trigger, Time Code
2-Pin ODU/LEMO (POWER)
12 - 24V DC
Operation & Environment
Power Consumption
30W max. (incl. two Remote Heads)
Temperature Operating Range
0 - 45°C (32 - 113°F)
Conformity
EMV: 2004/108/EG, CE: 93/68/EWG,
Low Voltage Standard 73/23/EWG,
RoHS
Remote Control Panels
Compatability
Sony RCPs or similar that use the 700 Protocol
Sony MSU-700, 700A, 750, 900, 1000, 1500
Sony RCP-700, 701, 720, 721, 730, 731, 740, 741, 750, 751, 920, 921, 1000, 1001, 1500, 1501, 1530Sony RM-B150, B750
Supported features
Master Black setting (RGB)Master White setting (RGB)
Master Gain setting (-6 to +12 dB)
Shutter setting
5600K (electronic color temp. conversion) on/off
PsF (CCD progressive read function) on/off
Auto White Balance
Step Gamma setting: 0.40 (BBC) or 0.45 (Rec. 709)
Gamma setting (RGB)
Knee Point setting (RGB)
Knee Slope setting (RGB)
Black Gamma setting (Low, L Mid, H Mid, High)(RGB)
White Clip setting (RGB)
Detail Level setting (sharpening)
"Test"-Button enables output of a test pattern (generated at camera heads, image processing with current settings is applied)"Bars"-Button enables output of SMPTe color bars (generated at base station, no image processing)
